Description
Product Overview

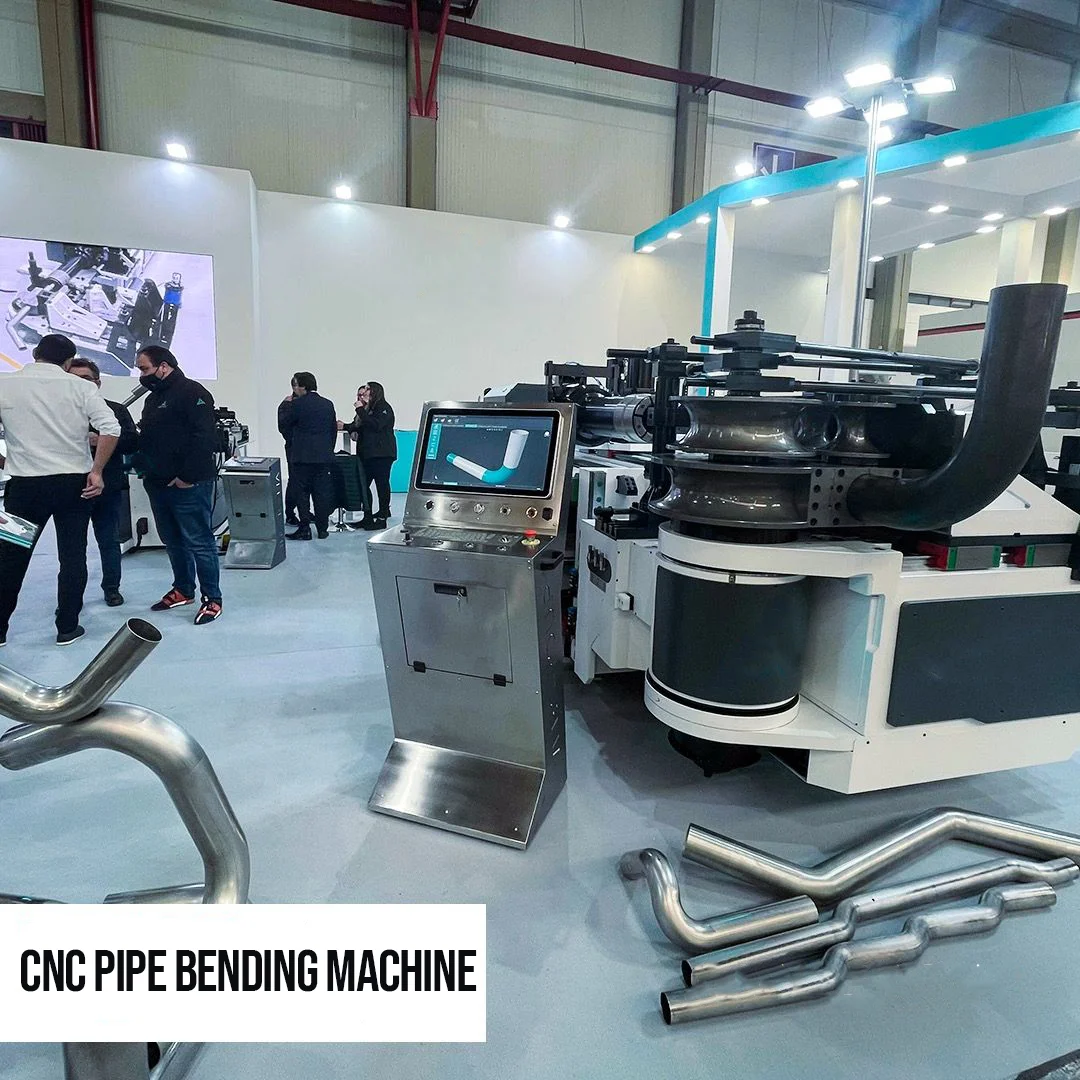

The Automatic CNC Pipe Bending Machine is a top-tier apparatus designed for maximum efficiency and precision in the bending process. The machine, designed to work with a variety of materials such as brass, copper, carbon steel, stainless steel, and aluminum, is suitable for square, oval, and exhaust tube pipe bending. With its automatic operation and multifunctionality, the machine stands out as a superior solution to pipe bending needs.
Technical Specifications
Our CNC Pipe Bending machine boasts impressive technical specifications that ensure high-quality results with every operation.
| Attribute | Value |
|---|---|
| Machine Type | Automatic Bending Machine |
| Bending Radius (mm) | 20 – 500 |
| Max. Bending Angle (Deg) | 180 |
| Bending Precision (Deg) | -+ 0.1 |
| Power (kW) | 5.5 |
| Weight (KG) | 2500 |
| Warranty | 1 Year |
Product Structure
A pipe bending machine typically consists of several key components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Operating Principle
The machine operates on the principle of hydraulic pressure and mechanical motion. The control panel allows operators to adjust parameters like bend angles and pressure. The hydraulic system generates the required force, which is then transmitted to the bending head. This force, combined with the mechanical motion of the bending head and clamping die, bends the pipe to the desired angle and radius.
Applications of the Product
Our Automatic CNC Pipe Bending Machine is versatile and can be used across a variety of industries:
- Garment Shops
- Building Material Shops
- Machinery Repair Shops
- Manufacturing Plant
- Home Use
- Retail
- Construction works
- Energy & Mining
- Other
- Advertising Company
Product Advantages
Our Automatic CNC Pipe Bending Machine offers several advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Why Choose Us
We specialize in producing high-quality pipe bending machines. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings. We encourage you to explore our product and contact us for your pipe bending needs.
Common Questions
- What materials can the machine process?
Our machine can process a variety of materials including brass, copper, carbon steel, stainless steel, and aluminum. - What is the maximum bending angle?
The maximum bending angle of our machine is 180 degrees. - What is the warranty period?
We provide a 1-year warranty on our machine.
