Description

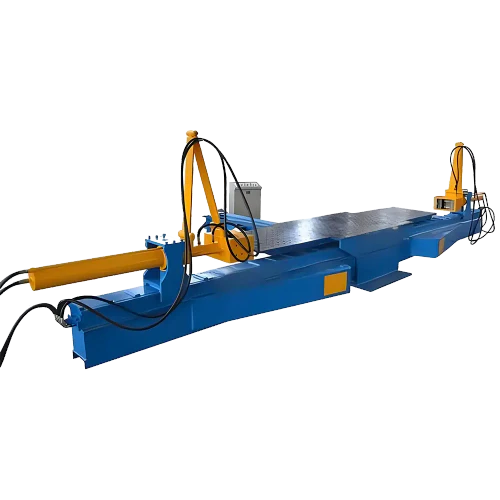

Introducing our top-tier, semi-automatic, hydraulic Sw38A Double Head Pipe Bending Machine. Designed to process a wide range of materials including copper, aluminum, alloys, carbon steel, and stainless steel, this machine is your go-to solution for all your pipe and tube bending requirements.
Key Features and Uses of Sw38A Double Head Pipe Bending Machine

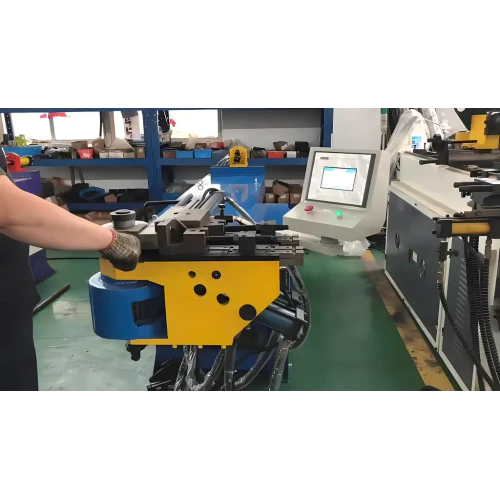

This machine is renowned for its versatility, precision, and consistency. Its touch screen control panel ensures easy operation, while its semi-automatic working method guarantees high accuracy. The Sw38A Double Head Pipe Bending Machine can handle a maximum bending capacity of 89 x 8mm, offering flexibility for diverse applications. With an IPX-8 waterproof rating, it is built to withstand challenging working conditions.
Specifications and Parameters
| Item | Name | Unit | Data | Remark |
| 1 | Max bending capacity | mm | Φ38 x 2mm | |
| 2 | Range of bending radius | mm | 38-200 | |
| 3. | Range of double bending center | mm | 140-1700 | Can according to customer’s requirement |
| 4 | Bending speed | Degree/s | 50 | |
| 27 | Warranty time | month | 14 |

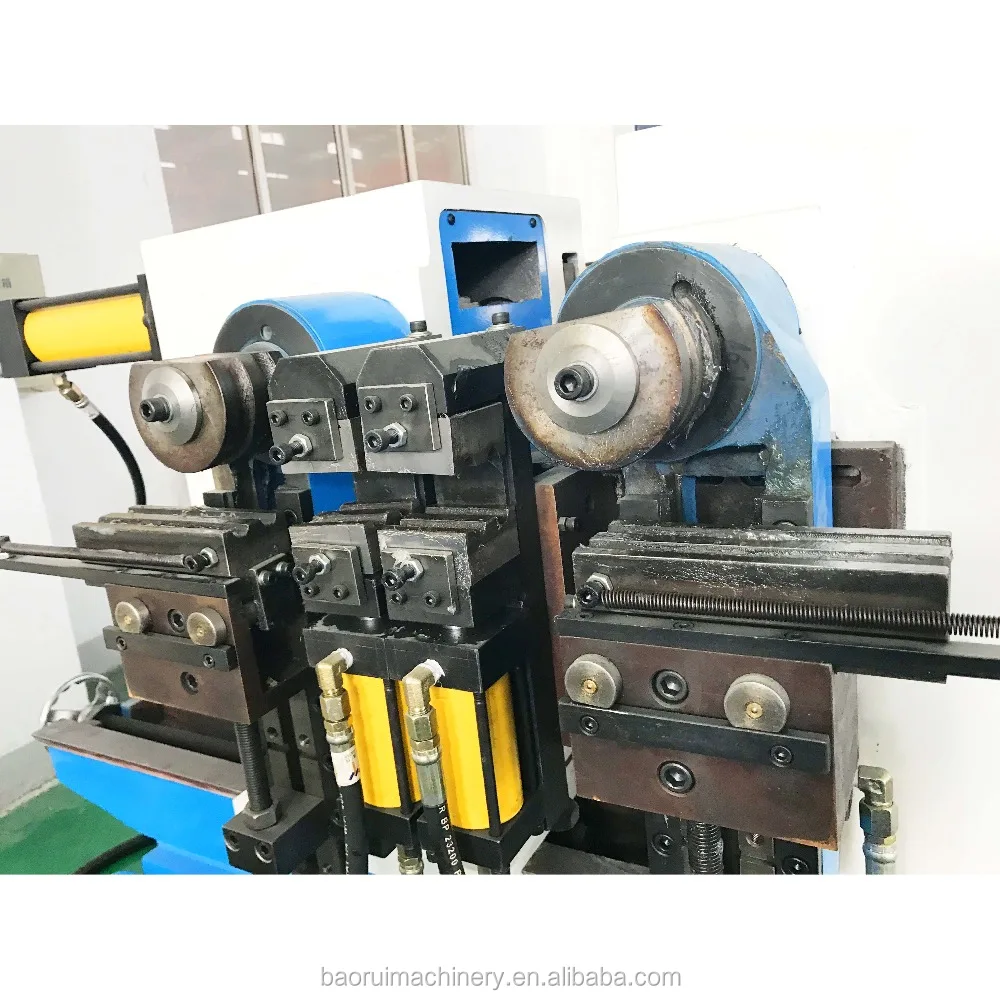

Key Components of Sw38A Double Head Pipe Bending Machine
This pipe bending machine comprises of several crucial components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle of Sw38A Double Head Pipe Bending Machine
Our machine operates through a semi-automatic hydraulic system. The bending head, held by the clamping die, exerts a bending motion on the pipe while the pressure die applies force to prevent deformation. The control panel allows adjustments of the bend angles, pressure, and other parameters to ensure precision.
Applications of Sw38A Double Head Pipe Bending Machine
The machine is suitable for a wide range of applications including:
- Automotive manufacturing
- Construction industry
- Furniture production
- Plumbing system installations
Advantages of Sw38A Double Head Pipe Bending Machine
This machine offers:
- Precision and consistency
- Versatility
- Time efficiency
- Cost savings
- Ability to create complex shapes
- Repeatable results
About Our Company
We are specialists in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. We take pride in customizing solutions that precisely align with our customers’ requirements. Our commitment to efficiency not only saves time but also drives down costs.
Explore our Sw38A Double Head Pipe Bending Machine and contact us for purchasing enquiries today!
Common Questions and Answers
- Q: What is the warranty period for the Sw38A Double Head Pipe Bending Machine?
A: The machine comes with a 14-month warranty period. - Q: What materials can the machine process?
A: The machine can process copper, aluminum, alloy, carbon steel, and stainless steel. - Q: How can I purchase the Sw38A Double Head Pipe Bending Machine?
A: You can contact us directly for purchasing enquiries.
