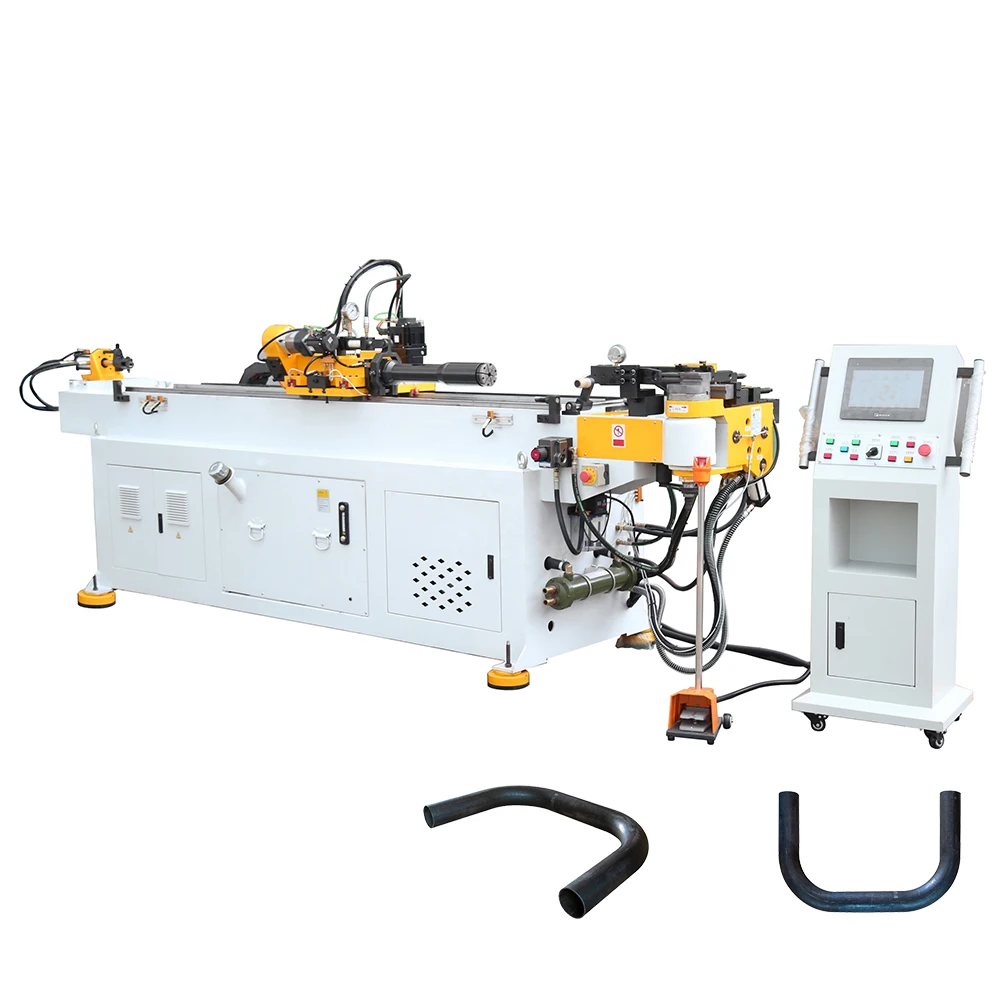

Metal Square High Performance Full Automatic CNC Pipe Bending Machine

Description

Our metal square high performance full automatic CNC pipe bending machine is a hot product of 2023, designed with cutting-edge technology to deliver optimal performance and efficiency in industrial settings. This semi-automatic machine is engineered to process various materials including brass, copper, stainless steel, carbon steel, and aluminum with utmost precision.

Product Specifications

Structural Components of the CNC Pipe Bending Machine

A pipe bending machine typically consists of several key components:

1. Frame: The rigid structure that provides stability and support during the bending process.
2. Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
3. Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
4. Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
5. Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
6. Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.

Working Principle of the CNC Pipe Bending Machine

The CNC pipe bending machine operates through a series of mechanical structures, workflows, and operation methods. The hydraulic system powers the bending operation, and the control panel adjusts bend angles, pressure, and other parameters to ensure precision in the bending process. The clamping die secures the pipe in place during bending, and the pressure die applies force to the outer side of the pipe to prevent buckling or deformation. The bending head holds the pipe and facilitates the bending motion, often including tools like bending dies.

Applications of the CNC Pipe Bending Machine

• Manufacturing Plants: Our CNC pipe bending machine is essential in various production lines, including automobile, furniture, HVAC, and more.

Advantages of the CNC Pipe Bending Machine

1. Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
2. Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
3. Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
4. Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
5. Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
6. Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.

Why Choose Our CNC Pipe Bending Machine

We specialize in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.

Common Questions

1. Q: What materials can this machine process?
   A: This machine can process a variety of materials including brass, copper, stainless steel, carbon steel, and aluminum.
2. Q: What is the warranty on this machine?
   A: The warranty for core components is one year.
3. Q: What is the voltage requirement for this machine?
   A: This machine operates on either 220V or 380V power supply.

Enjoy this video about our CNC Pipe Bending Machine:

We encourage you to explore the superior functionality and versatility of our CNC pipe bending machine. For inquiries or purchases, feel free to contact us.
