Description

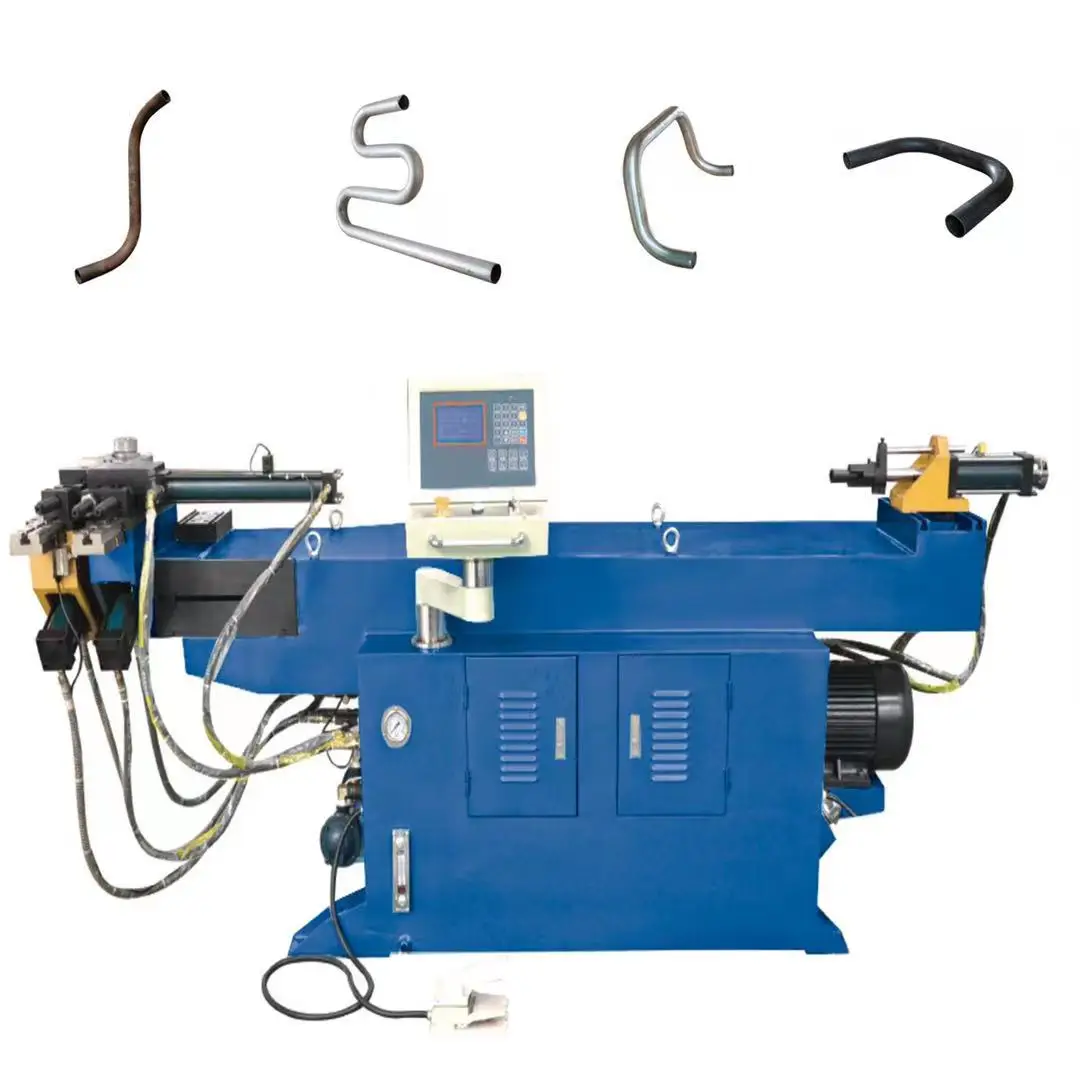

Introducing our high-quality 50NC Hydraulic Semi-Automatic Pipe Bending Machine, a top-of-the-range machinery designed explicitly for processing carbon steel. This top-performing machine, manufactured in 2023, is a new addition to our expansive product line. It is a semi-automatic machine, guaranteeing precision with a bending angle of up to 190 degrees and a bending precision of 0.1 degrees.
Key Features
This pipe bending machine is designed to provide top-notch performance and efficiency in bending metal tubes. It comes with a competitive price and one-year warranty, offering great value for your investment. The machine boasts a power rating of 5.5 kW and weighs 1220 KG.
Construction and Key Components
Our pipe bending machine is composed of several essential components:
-
Frame
The sturdy structure that offers stability and support during the bending process.
-
Bending Head
This component holds the pipe and enables the bending action. It often includes tools like bending dies.
-
Clamping Die
Used to secure the pipe in place during bending, preventing unwanted movement.
-
Pressure Die
Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
-
Hydraulic System
Powers the bending operation by creating hydraulic pressure to activate the bending head and other essential components.
-
Control Panel
Contains the controls for adjusting bend angles, pressure and other parameters, ensuring precision in the bending process.
Working Principle
The hydraulic system powers the bending operation, generating hydraulic pressure to activate the bending head and the other essential components. The pipe is secured in place by the clamping die during bending, preventing unwanted movement. The pressure die applies force to the outer side of the pipe to prevent buckling or deformation during bending. The control panel houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Applications
This machine is applicable in various industries such as hotels, garment shops, building material shops, machinery repair shops, manufacturing plants, farms, home use, printing shops, construction works, energy & mining, advertising companies, and many more.
Advantages of Our Pipe Bending Machine
-
Precision and Consistency
These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
-
Versatility
Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
-
Time Efficiency
Automation and programmability reduce manual labor, leading to faster production cycles.
-
Cost Savings
By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
-
Complex Shapes
Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
-
Repeatable Results
The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Contact Us Today
We invite you to explore this product and contact us for purchase. Our commitment to efficiency not only saves time but also drives down costs. With our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our commitment to delivering nothing less than excellence in all our offerings will surely meet and exceed your expectations.
Frequently Asked Questions
-
What is the bending radius of the machine?
The bending radius of our machine ranges from 100mm to 600mm.
-
What is the warranty of the machine?
We offer a one-year warranty for this machine.
-
What is the power of the machine?
The power of our machine is 5.5kW.
Check out this video for more information:
