Introduction

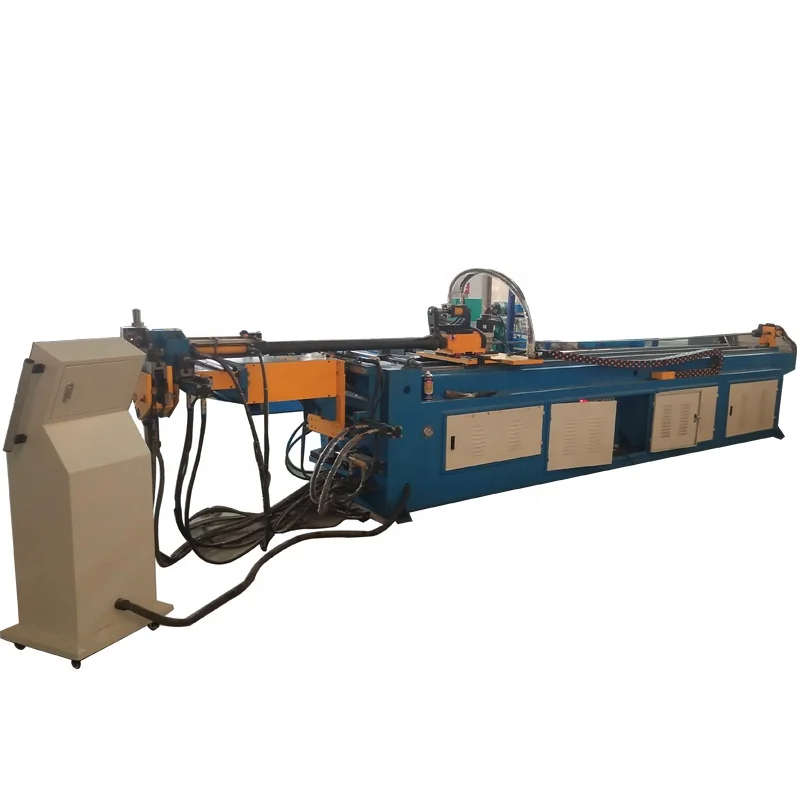

The High Efficiency DW38CNC Automatic Pipe Tube Bending Machine is an advanced equipment designed for processing a variety of materials such as ALLOY, Brass / Copper, Carbon steel, Stainless steel, Aluminum, and Plastic. This machine is ideal for various industries including hotels, garment shops, building material shops, machinery repair shops, food & beverage factories, farms, restaurants, homes, food shops, energy & mining, advertising companies, and more. It is a competitively priced product that offers superior functionality and precision.
Product Specifications
| Item | Value |
|---|---|
| Material / Metal Processed | ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum, Plastic |
| Condition | New |
| Machine Type | DW38CNC-4A-3SV |
| Bending Radius (mm) | 0 – 260 |
| Max. Bending Angle (Deg) | 190 |
| Bending Precision (Deg) | 0.01 |
| Automation | Semi-automatic |
| Extra Services | Cut To Length |
| Year | 2023 |
| Power (kW) | 4 |
| Weight (KG) | 1300 |
| Warranty | 1 Year |
Structure of the Machine
A pipe bending machine typically consists of several key components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle and Operation
The working principle of the DW38CNC Automatic Pipe Tube Bending Machine involves a mechanical process where the pipe is clamped between the bending die and the clamping die. The bending head then rotates the pipe around the bending die while the pressure die counters the force, ensuring the pipe maintains its shape during the bending process. The machine’s hydraulic system powers this operation, while the control panel allows operators to adjust the bend angles, pressure, and other parameters.
Application Fields
The DW38CNC Automatic Pipe Tube Bending Machine is applicable in various fields:
- Hotels: For creating custom furniture, fixtures, and decor.
- Garment Shops: Used in making display racks and hangers.
- Building Material Shops: Essential in the construction of structures and frameworks.
- Machinery Repair Shops: Helps in repairing and replacing bent pipes in various machines.
Advantages of the Machine
The DW38CNC Automatic Pipe Tube Bending Machine offers several advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
About Us
We specialize in producing high-quality pipe bending machine, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.
Explore our High Efficiency DW38CNC Automatic Pipe Tube Bending Machine today and contact us for purchase inquiries. Experience the difference of our high-quality, efficient, and cost-effective product!
Frequently Asked Questions
- Q: What is the maximum bending angle of the machine?
A: The maximum bending angle of the DW38CNC Automatic Pipe Tube Bending Machine is 190 degrees. - Q: What types of materials can the machine process?
A: The machine can process a variety of materials including ALLOY, Brass / Copper, Carbon steel, Stainless steel, Aluminum, and Plastic. - Q: What is the power requirement of the machine?
A: The machine requires a power of 4kW.
Product Demonstration
Watch our product demonstration to see the DW38CNC Automatic Pipe Tube Bending Machine in action:
