Description

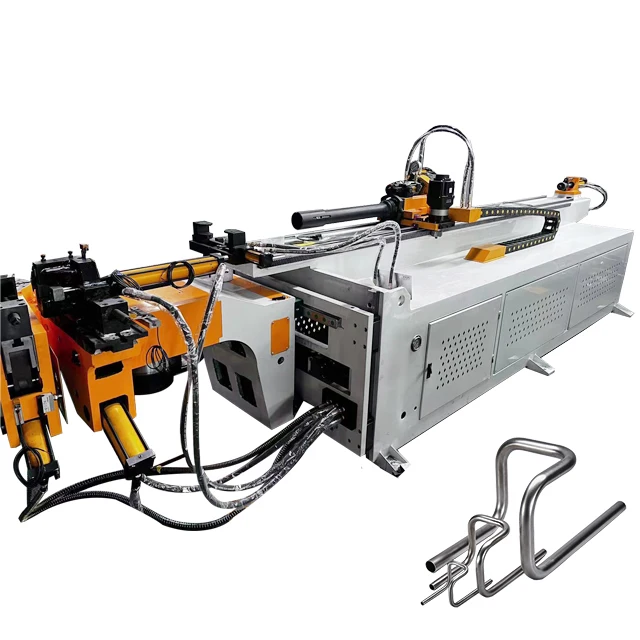

Overview of the DW63CNC 4A2SV Automatic Pipe Tube Bending Machine
The DW63CNC 4A2SV Automatic Pipe Tube Bending Machine is an advanced piece of machinery designed to efficiently and precisely bend pipes and tubes for the production of chairs, desks, and other furniture. It is capable of processing a variety of materials including alloy, brass, copper, carbon steel, stainless steel, and aluminum. The machine offers automation, high bending precision, and a wide bending radius, making it a versatile and indispensable asset in a range of industries.
Key Specifications
| Material / Metal Processed | ALLOY, Brass / Copper, Carbon steel, Stainless Steel, Aluminum |
| Condition | New |
| Bending Radius (mm) | 25 – 250 |
| Max. Bending Angle (Deg) | 190 |
| Bending Precision (Deg) | 1 |
| Place of Origin | China |
| Automation | Automatic |
| Extra Services | Slotting & Notching |
| Year | 2023 |
| Power (kW) | 7.5 |
| Weight (KG) | 3000 |
| Warranty | 1 Year |
| Key Selling Points | Automatic |
Structure of the Pipe Bending Machine
The DW63CNC 4A2SV Automatic Pipe Tube Bending Machine consists of several key components:
- Frame: This rigid structure provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle of the Pipe Bending Machine
The DW63CNC 4A2SV Automatic Pipe Tube Bending Machine works by securing the pipe or tube in place with the clamping die. The bending head, which includes the bending die, moves to bend the pipe according to the specified angle. The pressure die applies force to the outer side of the pipe, preventing any buckling or deformation during bending. The hydraulic system generates the necessary pressure to move the bending head and other components. The entire process is controlled via the control panel, which allows for precise adjustments of bend angles, pressure, and other parameters.
Applicable Industries
The DW63CNC 4A2SV Automatic Pipe Tube Bending Machine is applicable in a wide range of industries:
- Building Material Shops: It is used to bend pipes and tubes for the production of various building materials.
- Machinery Repair Shops: It can bend replacement parts or new components.
- Manufacturing Plant: It is an essential machine in the production line, especially in furniture manufacturing.
- Construction works: It is used to bend pipes and tubes for construction purposes.
Key Advantages
The DW63CNC 4A2SV Automatic Pipe Tube Bending Machine offers several key advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Why Choose Our Pipe Bending Machine
We specialize in producing high-quality pipe bending machine, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance.
Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.
We strongly encourage you to explore the benefits and features of our DW63CNC 4A2SV Automatic Pipe Tube Bending Machine. If you have any questions or would like to make a purchase, please don’t hesitate to contact us.
Frequently Asked Questions
- Q: What types of materials can the DW63CNC 4A2SV Automatic Pipe Tube Bending Machine handle?
- A: The machine can process a variety of materials including alloy, brass, copper, carbon steel, stainless steel, and aluminum.
- Q: Can the machine be used for complex bending tasks?
- A: Yes, the machine is capable of creating intricate and complex shapes, meeting various design requirements with ease.
- Q: Does the machine require a lot of maintenance?
- A: No, our pipe bending machine is designed for minimal maintenance while ensuring seamless operation.
