Description
Product Overview

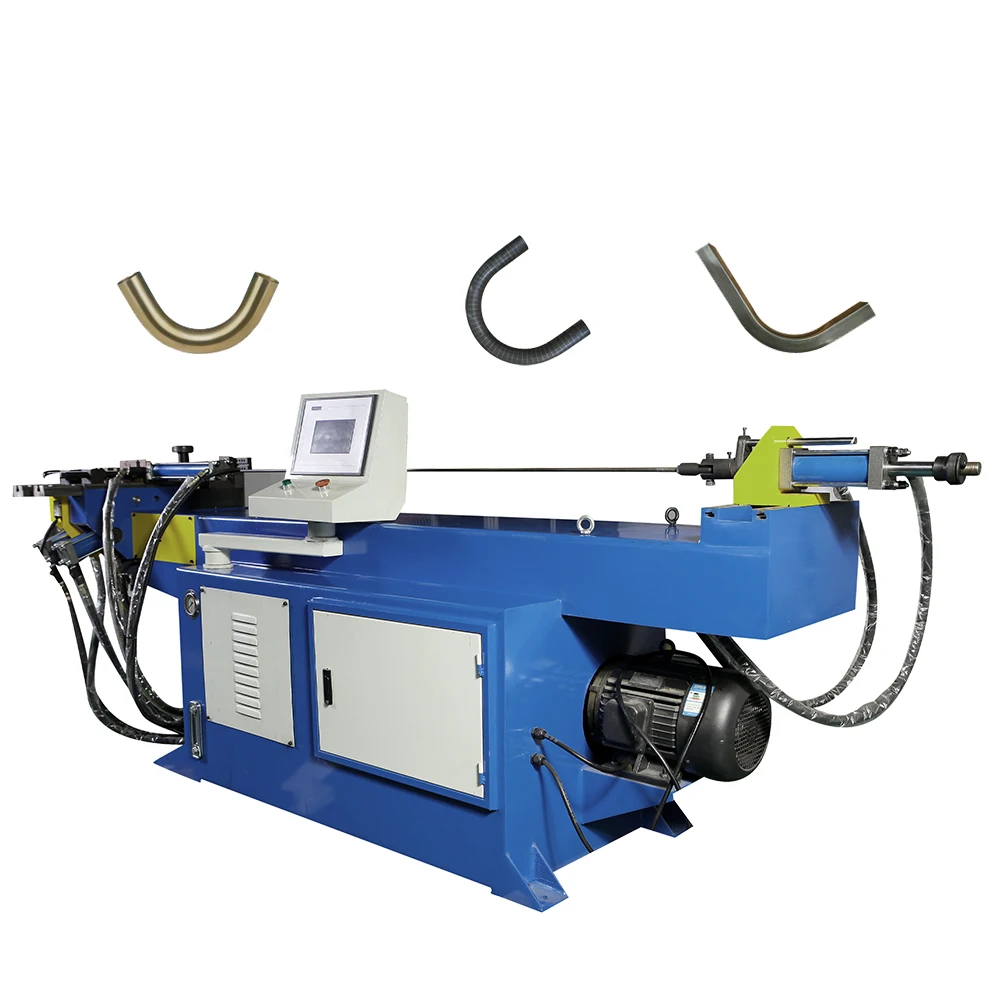

The DW50NC is an advanced pipe bending machine that is designed to handle a wide range of materials including alloy, brass, copper, carbon steel, stainless steel, aluminum, pipe, and steel. It is incredibly versatile, capable of bending pipes to a maximum angle of 190 degrees with a precision of 0.01MM. It is fully automatic and comes with a powerful 5.5kW motor.
Specifications
| Material/Metal Processed | ALLOY, Brass/Copper, Carbon steel, Stainless Steel, Aluminum, pipe and steel |
| Condition | New |
| Machine Type | DW50CNC 2A-1S |
| Bending Radius (mm) | 0-250 |
| Max. Bending Angle (Deg) | 190 |
| Bending Precision (Deg) | 0.01MM |
| Power (kW) | 5.5 |
| Weight (KG) | 1220 |
| Warranty | 1 Year |
Structural Components
A pipe bending machine typically consists of several key components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle
The DW50NC pipe bending machine operates by clamping the pipe into place between the bending die and the clamping block. The pressure die then applies force to the pipe, causing it to bend around the bending head. This process is powered by a hydraulic system, and the parameters of the bend are controlled via a sophisticated control panel. This allows for precise and consistent bending, even at high volumes.
Applications
The DW50NC pipe bending machine is ideal for a wide range of industries, including:
- Hotels
- Building Material Shops
- Food & Beverage Factories
- Restaurants
- Food Shops
- Printing Shops
- Energy & Mining
Product Advantages
The DW50NC pipe bending machine offers a number of unique advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Why Choose Us?
We specialize in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance.
FAQ
- Q: What materials can the DW50NC pipe bending machine process?
A: The DW50NC can process a wide range of materials, including alloy, brass, copper, carbon steel, stainless steel, aluminum, pipe, and steel. - Q: What is the maximum bending angle of the DW50NC?
A: The DW50NC can bend pipes to a maximum angle of 190 degrees. - Q: What kind of warranty does the DW50NC come with?
A: The DW50NC comes with a 1-year warranty.
