Description
Introduction

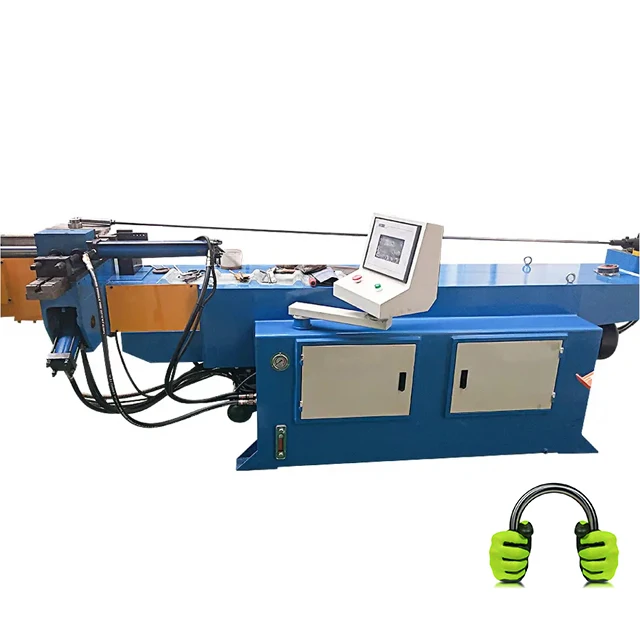

The DW50NC tube bending machine is a semi-automatic machine that’s ideal for building material shops, machinery repair shops, manufacturing plants, and farms. It works with a variety of metals, including brass, copper, carbon steel, stainless steel, and aluminum. The machine offers a bending radius of 30 to 190mm and a maximum bending angle of 190 degrees with a precision of ??0.1 degree.
Key Features and Specifications
The DW50NC tube bending machine provides unparalleled performance thanks to its numerous features and specifications. It is powered by a 5.5 kW motor and weighs 1220 KG. The machine comes with a one-year warranty and offers extra services such as end forming. The showroom locations for this product are in South Korea and Australia.
Technological Data
| Item | Name | Unit | Data | Remark |
| 1 | Max bending capacity | round /square pipe | Φ50 X 3mm/35 X 35 X 3mm | For Carbon Steel |
| 2 | Max bending radius | mm | 350 | Can according to customer’s requirement |
| 3 | Min bending radius | mm | Depend on diameter | |
| 4 | Standard Mandrel Length | mm | 2200 | Can according to customer’s requirement |
| 5 | Max bending degree | Degree | 190 | |
| 6 | Bending unit | piece | 16 | |
| 7 | Oil motor power | Kw | 5.5 | |
| 8 | Max storage units | group | 16 x 16 | |
| 9 | Max pressure | MPa | 12 | Adjustable |
| 10 | Hydraulic System Control | Electromagnetic Valve | Japan Yuken | |
| 11 | Machine weight | Kg | 1220 | |
| 12 | Machine size | mm | 4000 x 750 x 1000 | |
Working Principle
The DW50NC pipe bending machine bends the metal tube to the required shape by clamping and bending the tube with the help of the bending and clamping dies. The degree of bending can be easily adjusted on the touch screen control panel. The hydraulic system provides the necessary force for the bending operation. The machine is capable of bending tubes from 0 to 190 degrees.
Applications
The DW50NC pipe bending machine is widely used in various industries such as building material shops, machinery repair shops, manufacturing plants, and farms. It is especially popular for its ability to handle a variety of metals and its high bending precision.
Advantages
The machine offers several advantages such as precision and consistency, versatility, time efficiency, cost savings, ability to create complex shapes, and repeatable results. It is an excellent choice for businesses that require a reliable, efficient, and versatile tube bending machine.
About Us
We specialize in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.
FAQs
- Q: What is the maximum bending capacity of the DW50NC pipe bending machine?
A: The maximum bending capacity is 50 X 3mm for round pipes and 35 X 35 X 3mm for square pipes. - Q: What is the warranty period for this machine?
A: The machine comes with a 1-year warranty. - Q: What types of metal can this machine process?
A: The machine can process various types of metals including brass, copper, carbon steel, stainless steel, and aluminum.
