Description

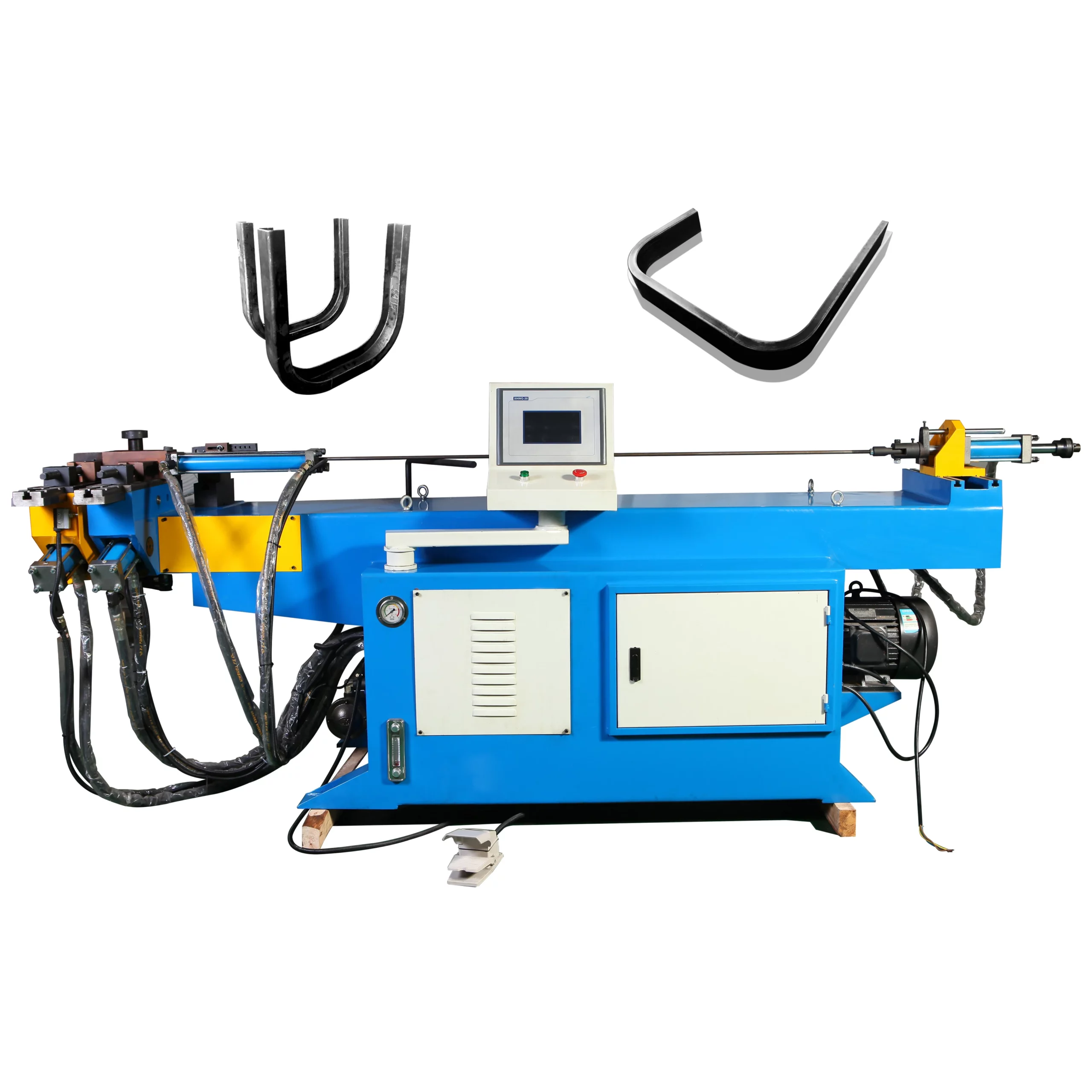

Introducing the DW38 NC Tube Bending Machine
The DW38 NC Tube Bending Machine is a state-of-the-art piece of equipment made for processing various metals such as ALLOY, Brass/Copper, Carbon steel, Stainless steel, and Aluminum. This semi-automatic machine features a bending radius of 15 – 260 mm and a maximum bending angle of 190 degrees. With a bending precision of 1 degree, you can trust this machine to deliver precise results every time.
Product Specifications
| No | Item | Data |
| 1 | Power | 4KW |
| 2 | Fuel tank capacity | 110L |
| 3 | Operating weight | 750KG |
| 4 | System maximum pressure | 12Mpa |
| 5 | Maximum bending angle | 190 |
| 6 | Standard grommet length | 1600mm |
| 7 | Key allowable number of elbows | 16 |
| 8 | Maximum bend diameter | 38mm |
Key Components of the DW38 NC Tube Bending Machine
1. Frame
The rigid structure that provides stability and support during the bending process.
2. Bending Head
This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
3. Clamping Die
Used to secure the pipe in place during bending, preventing unwanted movement.
4. Pressure Die
Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
5. Hydraulic System
Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
6. Control Panel
Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Applications of the DW38 NC Tube Bending Machine
The DW38 NC Tube Bending Machine is widely used across multiple industries, including Building Material Shops, Machinery Repair Shops, Construction works, Advertising Companies, among others.
Benefits of the DW38 NC Tube Bending Machine
The DW38 NC Tube Bending Machine offers a multitude of advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Why Choose Our DW38 NC Tube Bending Machine?
We specialize in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings. We strongly encourage you to explore the DW38 NC Tube Bending Machine and contact us to make a purchase.
Common Questions About the DW38 NC Tube Bending Machine
Q: What type of materials can the DW38 NC Tube Bending Machine handle?
A: The machine can handle a variety of metals such as ALLOY, Brass/Copper, Carbon steel, Stainless steel, and Aluminum.
Q: What is the maximum bending angle of the DW38 NC Tube Bending Machine?
A: The maximum bending angle is 190 degrees.
Q: How heavy is the machine?
A: The operating weight of the machine is 750 KG.
