Description

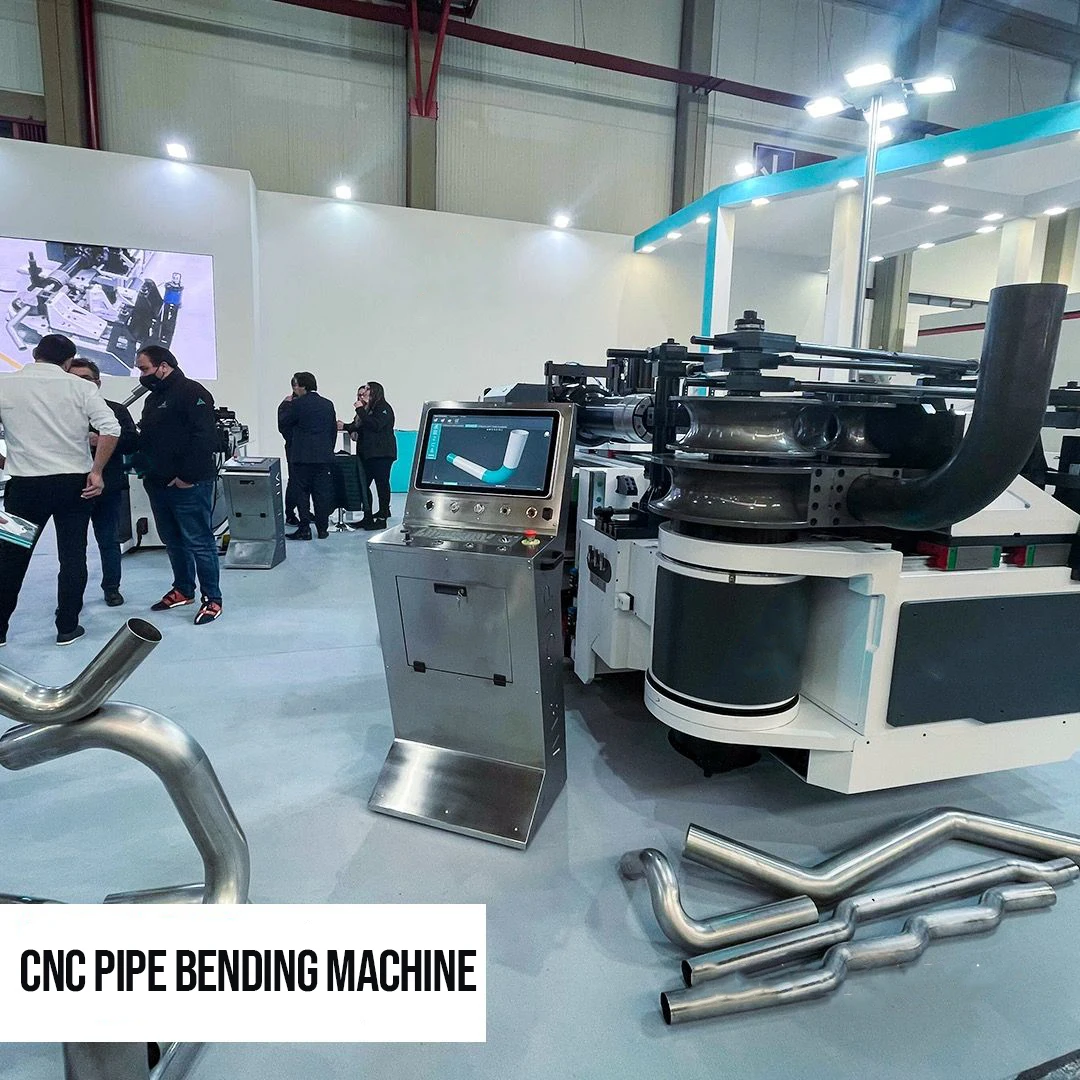

Introduction to the CNC Pipe Bending Machine
The CNC Pipe Bending Machine is an automatic, multifunctional piece of machinery that is designed to bend a variety of metallic materials, including brass, copper, carbon steel, stainless steel, and aluminium. It’s an essential tool for industries such as garment shops, building material shops, machinery repair shops, manufacturing plants, farms, home use, retail, construction works, energy & mining, advertising companies, among others.
Product Specifications
The CNC Pipe Bending Machine boasts a maximum bending angle of 190 degrees, with a precision of ??0.05 degrees, ensuring highly accurate bending operations. The machine is powered by a 5.5 kW motor and has a bending radius of 20 – 500 mm. It weighs 2000 KG and comes with a 1-year warranty.
Product Parameters:
| Material / Metal Processed | ALLOY, Brass / Copper, Carbon Steel, stainless steel, Aluminum |
| Condition | New |
| Machine Type | Bending Machine |
| Bending Radius (mm) | 500 |
| Max. Bending Angle (Deg) | 190 |
| Bending Precision (Deg) | ??0.1 |
| Power (kW) | 5 |
| Weight (KG) | 1800 |
| Warranty | 1 Year |
Structural Components of the CNC Pipe Bending Machine
A pipe bending machine typically consists of several key components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle of the CNC Pipe Bending Machine
The CNC Pipe Bending Machine operates by utilizing a combination of high pressure and a bending die to shape the pipe. The bending head, which holds the pipe and facilitates the bending motion, is powered by a hydraulic system. This system generates hydraulic pressure to actuate the bending head and other essential components. A clamping die secures the pipe in place during bending, preventing unwanted movement. Meanwhile, the pressure die applies force to the outer side of the pipe to prevent buckling or deformation during bending. All these operations are controlled from the control panel, which houses the controls for adjusting bend angles, pressure, and other parameters.
Applications of the CNC Pipe Bending Machine
The CNC Pipe Bending Machine is applicable in a variety of industries:
- Garment Shops: For creating customized hangers and racks.
- Building Material Shops: To bend pipes for construction purposes.
- Machinery Repair Shops: For repairing and adjusting machinery parts.
- Manufacturing Plants: Used in the manufacturing process of various products.
Advantages of the CNC Pipe Bending Machine
The CNC Pipe Bending Machine offers several key advantages:
- Precision and Consistency: These machines ensure accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Pipe benders can handle a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation and programmability reduce manual labor, leading to faster production cycles.
- Cost Savings: By minimizing material wastage and reducing the need for manual labor, these machines contribute to overall cost-effectiveness.
- Complex Shapes: Pipe bending machines enable the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: The automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
Why Choose Our CNC Pipe Bending Machine
We specialize in producing high-quality pipe bending machine, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings. We strongly encourage you to explore our CNC Pipe Bending Machine and contact us for purchase.
Frequently Asked Questions
- What materials can the CNC Pipe Bending Machine process?
The machine can process a variety of materials, including alloy, brass, copper, carbon steel, stainless steel, and aluminium. - What is the maximum bending angle of this machine?
The machine can bend up to a maximum angle of 190 degrees. - What is the warranty period for this machine?
The machine comes with a 1-year warranty.
