Description
Product Overview

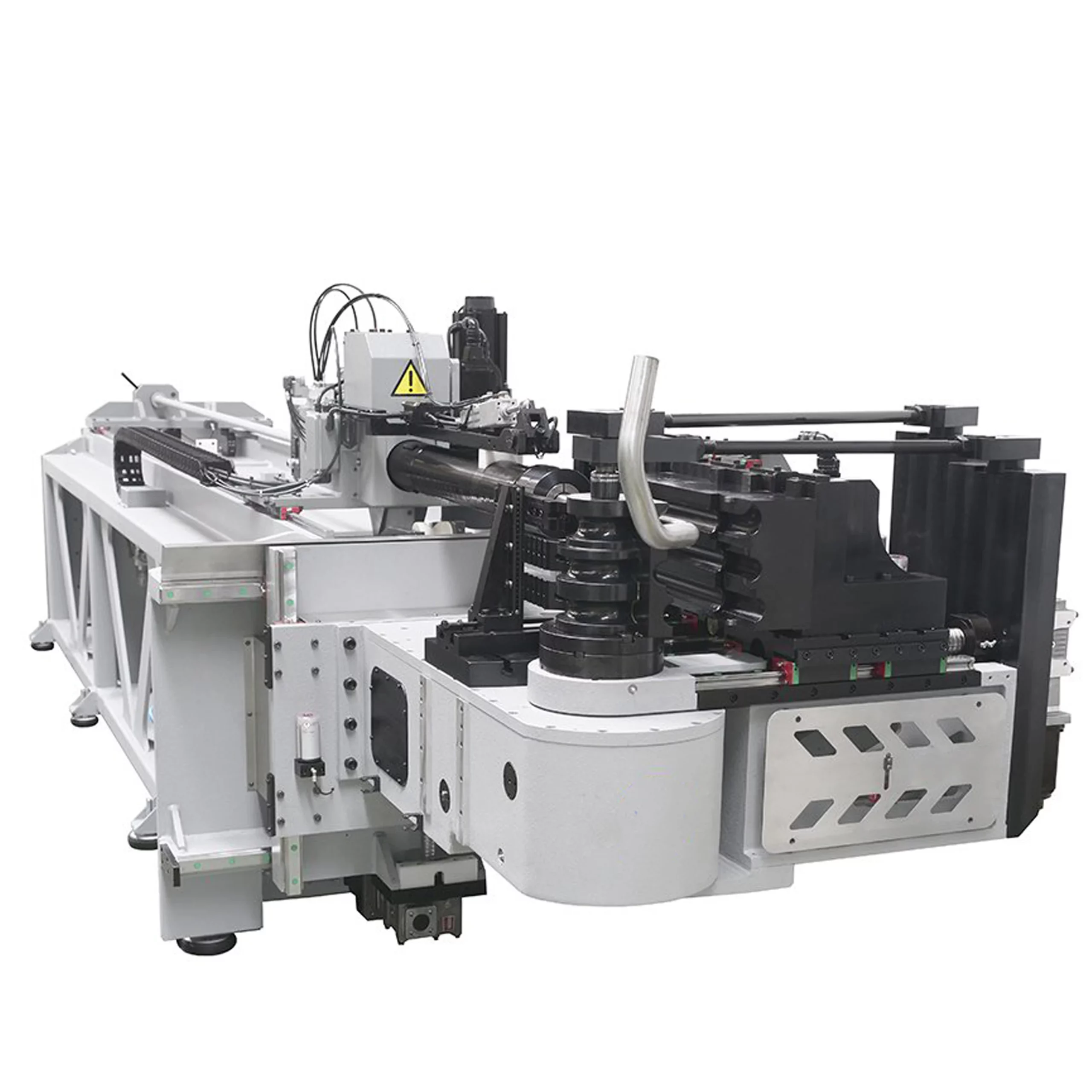

Our state-of-the-art 360 Degree Bicycle 7 Axis Evaporator Copper CNC Pipe Tube Bending Machines 50 Big Shower Brass Boiler Stainless Steel Mexico Max is a versatile, high-performance product that is designed to meet the needs of various industries. This machine is capable of bending a wide range of metals, including alloy, brass, copper, stainless steel, and aluminum, with precision and efficiency. It’s an automatic, multi-functional bending machine that offers additional machining services, making it an essential tool in building material shops and manufacturing plants.
Specifications and Features
This machine boasts an impressive max bending angle of 190 degrees, achieving a bending precision of 0.1 degrees. It has a power of 11 kW and weighs 4000 KG. The machine comes with a 1-year warranty, ensuring reliable and long-lasting performance. It also features a bending radius ranging from 100 to 600 mm.
| Bending capacity range: | parameter |
| round tubing mild steel,Alu tube, | φ6mm~φ38x 30 mm |
| round tubing stainless steel | φ6mm~φ38x 1,5 mm |
| -Bending angle up to | 180°+ 10° |
| -Bending speed | 180°/S |
| -Speed of front feed | 1800 MM/S. |
| -Speed of rotation | 550°/S. |
| Accuracy of the bending axis | +/-0,05° |
| -Accuracy of the length | +/-0,05 MM |
| -Accuracy of the rotation | +/-0,05° |
| Arbor length/Usable length | 3048 mm (customizable) |
Machine Structure
Our pipe bending machine consists of several key components:
- Frame: The rigid structure that provides stability and support during the bending process.
- Bending Head: This component holds the pipe and facilitates the bending motion. It often includes tools like bending dies.
- Clamping Die: Used to secure the pipe in place during bending, preventing unwanted movement.
- Pressure Die: Applies force to the outer side of the pipe to prevent buckling or deformation during bending.
- Hydraulic System: Powers the bending operation by generating hydraulic pressure to actuate the bending head and other essential components.
- Control Panel: Houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Working Principle
The machine operates by using hydraulic pressure to actuate the bending head, which holds the pipe and facilitates the bending motion. The clamping die secures the pipe in place during bending, while the pressure die applies force to the outer side of the pipe to prevent deformation. The control panel houses the controls for adjusting bend angles, pressure, and other parameters, ensuring precision in the bending process.
Applications
Our pipe bending machine is widely used in:
- Building Material Shops: For constructing various shapes and structures.
- Manufacturing Plant: For creating parts and components in different shapes and sizes.
Product Advantages
Our pipe bending machine offers numerous advantages:
- Precision and Consistency: Ensures accurate and consistent bending, meeting precise specifications with each operation.
- Versatility: Handles a range of materials and pipe sizes, providing flexibility for diverse applications.
- Time Efficiency: Automation reduces manual labor, leading to faster production cycles.
- Cost Savings: Minimizes material wastage and reduces the need for manual labor, contributing to overall cost-effectiveness.
- Complex Shapes: Enables the creation of intricate and complex shapes, meeting design requirements with ease.
- Repeatable Results: Automation ensures that identical bends can be replicated reliably, maintaining product quality across batches.
About Us
We specialize in producing high-quality pipe bending machines, excelling in both research and development as well as manufacturing. Leveraging our extensive experience in product design, we take pride in customizing solutions that precisely align with our customers’ requirements. Our years of expertise and technical prowess ensure that our equipment not only functions seamlessly but also requires minimal maintenance. Quality control is a top priority for us, as we provide a wide range of specifications utilizing standard materials to guarantee consistent, reliable performance. This reliability instills complete confidence in our customers when using our products. Our commitment to efficiency not only saves time but also drives down costs. Offering a diverse range of styles and comprehensive services, we are dedicated to delivering nothing less than excellence in all our offerings.
We strongly encourage you to explore our product and contact us for any inquiries or purchases. We are confident that our pipe bending machine will exceed your expectations and meet all your bending needs.
FAQs
- Q: What materials can this machine bend?
A: This machine can bend a wide range of metals, including alloy, brass, copper, stainless steel, and aluminum. - Q: What is the warranty period for this machine?
A: The machine comes with a 1-year warranty, ensuring reliable and long-lasting performance. - Q: What is the bending capacity of this machine?
A: The machine boasts an impressive max bending angle of 190 degrees, achieving a bending precision of 0.1 degrees.
